Add build-time kerning for swara pairs#77
mbaljeetsingh wants to merge 1 commit into
omenad:developfrom
mbaljeetsingh:font/bhatkhande-kerning

Conversation

@mbaljeetsingh

@mbaljeetsingh mbaljeetsingh commented Aug 25, 2026

Copy link
Copy Markdown
Contributor

The Bhatkhande faces are deliberately monospaced — every swara gets the same 1582/2048 advance so the notation grid stays tabular — but the glyph ink varies a lot per language: Gurmukhi ni overhangs its box while sa/re/ga leave ~0.1em of side bearing on each side. The result is that a run like sssr reads spread out next to a naturally-touching nnns, and the fonts ship no swara kerning to compensate. (We currently work around this at display time in kirtannotation.com / sangeetnotation.com by measuring the webfonts and injecting per-pair negative margins — kerning inside the font makes all of that unnecessary, in inputs, canvas, and print alike.)

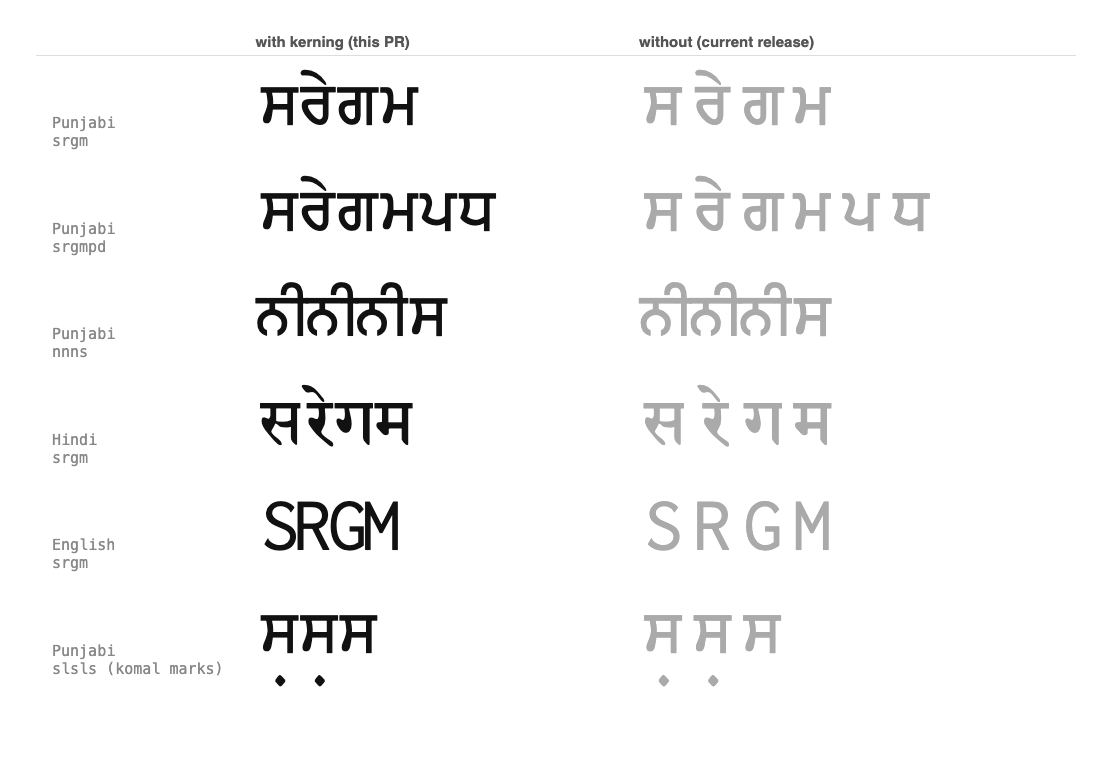

Kerned vs unkerned, all four faces

This PR adds a build-time kerning step:

  • bhatkhande/kerning.py measures the left/right side bearings of the 12 swara glyphs (s r g m p d n R G M D N) from each generated face's real outlines — after language glyph replacement, so each language's own letterforms drive the values — and adds a class-based kern GPOS lookup with pair values min(0, TARGET_GAP − (rsb(a) + lsb(b))), TARGET_GAP = 0.03em. Values are negative-only: pairs the font already draws tighter than the target (ni-ni's designed overlap) keep their spacing.
  • bhatkhande/build.py calls it between glyph replacement and save, so the existing scripts/build flow picks it up with no new commands or dependencies (pure FontForge API).
  • The kerning is authored as a chained context applying single adjustments to the second glyph rather than plain GPOS pairs, because of the zero-advance marks (komal l/L, octave u/U): a pair kern on the first glyph's advance drags the mark drawn after it off its base note, and a pair value on the second glyph makes shapers consume that glyph, losing every second kern in a run. With the chain (marks skipped via the ignore-marks flag, shift on the second glyph only), a join kerns across a mark while the mark stays glued to its note. The existing mark-centering pairs (r+l +100, M+u +190, …) are untouched. Strokes, dashes, digits, and arcs break the chain.

Verified

  • GPOS dumps of all four built TTFs (fonttools): 124–144 kerned joins per face under kern (DFLT+latn), no positive values, the pre-existing mark-centering lookup intact, marks classified in GDEF.
  • Browser test at 72px: Punjabi sssr tightens by 0.492em (exactly the predicted 1007/2048), 6- and 8-note runs kern at every join, nnns is effectively unchanged (−0.006em), mark-carrying slsls kerns across the komal marks with the marks staying glued (verified against the release rendering), and font-feature-settings: "kern" 0 restores the monospaced layout for consumers that need it.

Build notes

  • This PR is source-only: no rebuilt TTFs/UFOs are committed, so the diff stays reviewable — rerun scripts/build after merging (note that regenerating UFOs with current FontForge rewrites every .glif, format 1→2). Happy to push built TTFs on request.
  • The sungsit/fontforge image in scripts/build no longer pulls with modern Docker (v1 manifest error). We built and verified with debian:bookworm-slim + python3-fontforge (apt-get install python3-fontforge, then python3 ./build.py <lang> and scripts/convert.py as in scripts/build). Happy to send a follow-up updating scripts/build.

The bigger question: default-on kerning vs the tabular grid

kern is on by default in browsers and LibreOffice, and kerned advances are pair-dependent — so plain-text layouts that stack notation lines and rely on the monospaced grid for matra-column alignment (the layout the docs moved to with the 3.1.0 dividers) will drift: Hindi N+N stays 1582 while r+r becomes 1050, and dividers/strokes keep full advances. Word is unaffected by default (its kerning is opt-in), and web apps that manage their own columns are fine — but anyone relying on character-grid alignment in a browser or LibreOffice would need kerning turned off.

If you'd rather protect plain-text grids by default, the same pairs can ship under an opt-in feature (e.g. ss01) instead of kern, and consumers that want tight beats enable it explicitly (font-feature-settings: 'ss01' 1). The build code is identical either way; if you pick ss01, the only asks are a stable, documented tag and a docs note that consumers must opt in.

@mbaljeetsingh
mbaljeetsingh force-pushed the font/bhatkhande-kerning branch from 5733d4f to 06fbd4b Compare August 25, 2026 12:57
@mbaljeetsingh
mbaljeetsingh force-pushed the font/bhatkhande-kerning branch from 06fbd4b to 29de170 Compare August 25, 2026 12:59
