feat: Debug slots — taxonomy in the UI, session-only semantics, test-pattern proof (P2–P6) - #259
Draft
Yona-Appletree wants to merge 18 commits into
Draft
feat: Debug slots — taxonomy in the UI, session-only semantics, test-pattern proof (P2–P6)#259Yona-Appletree wants to merge 18 commits into
Yona-Appletree wants to merge 18 commits into
Conversation
…opes DirtySummary drops its transient bucket (D7): a Debug override is never dirty, never gates unload, never tints a header, and never appears in the Save panel — the live-only-never-gates rule is now structural. UiPendingEditPhase::Live and the Save panel's "Live (transient)" sections are deleted (retires S1, S2, S10; defuses W8). Debug values get Clear as their verb: SlotEditOp::Clear (per value), NodeClearDebugOp (per node), ProjectOp::ClearDebugEdits (project-wide, consumed by P3's global chip). All three land on RemoveSlotEdit; for a Debug slot the authored default is the shape default. Failed Debug edits still count as failed (rejected writes need attention regardless of target); a test pins this. Plan: lp2025/2026-07-31-1736-ephemeral-slots (P2) Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Node cards partition config by SlotRole (D3/D4): Setting/Fixed under a 'Settings' header, Debug fields FLATTENED into a dedicated Debug section regardless of declaring record — clock's controls.* render as top-level rows and the old 'Controls' record row disappears. The section comes from role, not record name. Treatment is a semantic UiAffordance::Debug in lpa-studio-core, produced only by from_debug_overrides (never by dirty merging); the web layer maps it to attention-orange + diagonal hazard stripes in one seam (app/affordance.rs + one style.css block), so the visual can change later without hunting call sites (D9). Three tiers (D8): global 'Debug active · N · Clear all' header chip (dispatches ProjectOp::ClearDebugEdits), node-card marker while a node carries an override, and the Debug section striped ALWAYS — even idle — which is the structural fix for clean-transient invisibility. Per-node Clear lands in the section header (first UI entry for NodeClearDebugOp). Also fixes a P2 web test asserting 'Reset' where the code ships 'Clear' (web tests are outside just check). Plan: lp2025/2026-07-31-1736-ephemeral-slots (P3) Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…nced P2/P3 removed the blue live chrome from components; the regenerated bundle drops the corresponding arbitrary-value utilities (removals only). Plan: lp2025/2026-07-31-1736-ephemeral-slots (P3) Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

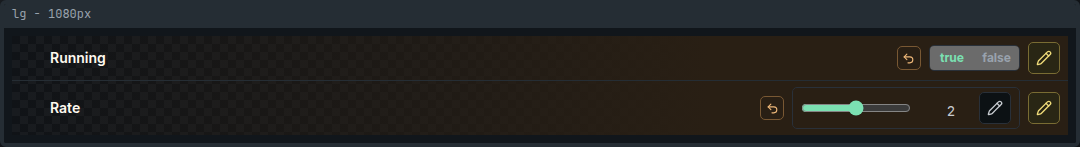

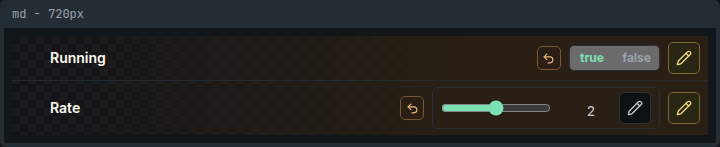

Rows no longer re-stripe on top of the striped section — the stacking is what made v1 read many times too strong; rows keep only the soft orange wash. Stripe alpha drops 0.1/0.2 -> 0.03/0.07 with a wider pitch (4px/14px), and chips/icon chrome move to the faint variant. Plan: lp2025/2026-07-31-1736-ephemeral-slots (P3, G1 iteration) Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
G1 feedback round 2. The Debug section becomes a disclosure using the established card-UI idiom (NodeCardUiState.debug_open, default false, via NodeUiOp::SetDrawer): the striped DEBUG header stays always visible with the active count and a working Clear, rows render only when expanded — most sessions never need them open. Row geometry is pinned so touching a control moves nothing: debug rows carry a fixed 44px floor and reserve the trailing verb footprint when untouched, and the section header holds 28px in every state (count and Clear appearing measure 0px). Verified via live getBoundingClientRect. Plan: lp2025/2026-07-31-1736-ephemeral-slots (P3, G1 iteration 2) Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…eedback) Plan: lp2025/2026-07-31-1736-ephemeral-slots (P3, G1 iteration 3) Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
The dynamic slot reader warns and skips an authored Debug-role field (single seam, covers host tooling, studio, and firmware parses alike), so an on-disk value can never become base — reset targets the shape default structurally (kills W3). Schema-gen omits Debug fields from authoring schemas while shape dumps keep roles (kills W2); the 17 example clock.json files drop their all-defaults controls stanzas. The lpa-server fs-refresh test now probes with a Setting-role binding, since an external controls.rate rewrite is correctly a no-op. Plan: lp2025/2026-07-31-1736-ephemeral-slots (P4) Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…ypass) The first Debug bool and first hardware-mode Debug slot. The engine bypass is harvested from 25c3581 recast onto the effective def: while test_pattern is true the graph resolve is skipped entirely and the last-established extent repaints solid white through the shared publish seam; the frame it flips false the graph renders again — no black frame. All TTL/press_id/renewal machinery is dropped (a Debug slot has a durable home); the node accepts no runtime commands and the wire is untouched (proto stays 4). The FakeResolver harness counts input resolves and render calls separately, so 'the graph was skipped' is proved, not inferred; a studio e2e pins that the output card's Debug section derives entirely from role + partition with zero output-specific UI code. Plan: lp2025/2026-07-31-1736-ephemeral-slots (P5) Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
ADR 2026-08-01-debug-slots-taxonomy records the Settings/Panel/Debug/ State language table, the Panel-vs-Debug boundary (exposure vs transient-by-nature), and the D1 routing rule (events → command channel; ephemeral state → Debug slots; produced state → direction-implied), reconciling — without amending — the 2026-07-27 command-channel ADR and marking its sim-button follow-up obsolete. Glossary gains a Debug entry; the pane-grammar ADR gains the debug colour family. Paydown: stale overlay entries classify by role (S4); both sides share one persistence classifier incl. the unresolvable→Setting rule (S5); ProjectRegistry::mutate now validates like the batch path, with the one legitimate Fixed-map writer isolated as crate-private stage_dedicated_op (W9). S6/S7/S8/S9 logged in docs/debt/. Stale SlotPolicy-era prose swept from crate READMEs and module docs. Plan: lp2025/2026-07-31-1736-ephemeral-slots (P6) Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Three fixes from the panel.md/glossary owner's review (verdict: no structural collision): latching-vs-momentary panel persistence spelled out (P14 gestures never persist yet are Panel — fallback is bus resolution, not a shape default); exposure stated as binding via the bound channel, control identity (scope, channel); the lease-rejection scoped to state-with-a-durable-home so P9's momentary wire leases aren't foreclosed. Plan: lp2025/2026-07-31-1736-ephemeral-slots (P6, G2 review) Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
The merge of main brought quad-equal100-v3, quad-gamma-full, quad-gamma-v3, quad-strips-v3 and quad60-v3, whose clock.json files were authored before D2 landed; all carried identical shape-default controls values. Schema conformance is green again. Plus rustfmt of a hand-resolved import. Plan: lp2025/2026-07-31-1736-ephemeral-slots (P6, merge follow-up) Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…l-210c61' into claude/debug-slots-p2-p6
The test (new on main) fabricated an overlay entry through the then- unvalidated ProjectRegistry::mutate against an unknown artifact; with mutate now validating like the batch path, the setup loads a real minimal project root and assigns ProjectDef's one writable field (name.some) instead. Test intent unchanged: the read reports the mutation revision. Plan: lp2025/2026-07-31-1736-ephemeral-slots (P6, merge follow-up) Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Yona-Appletree
changed the base branch from
claude/ephemeral-debug-slots-impl-210c61
to
main
August 2, 2026 07:32
Contributor

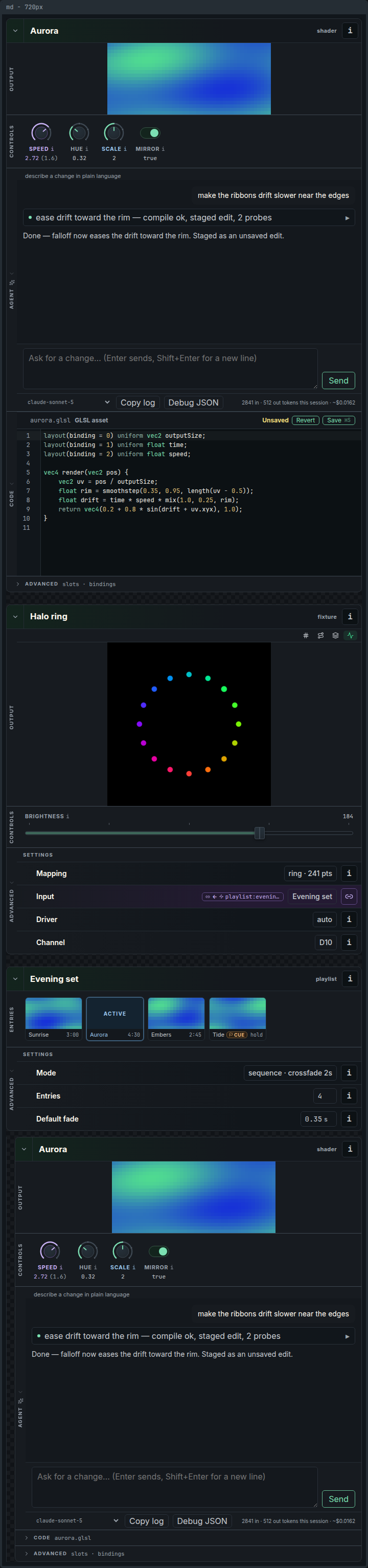

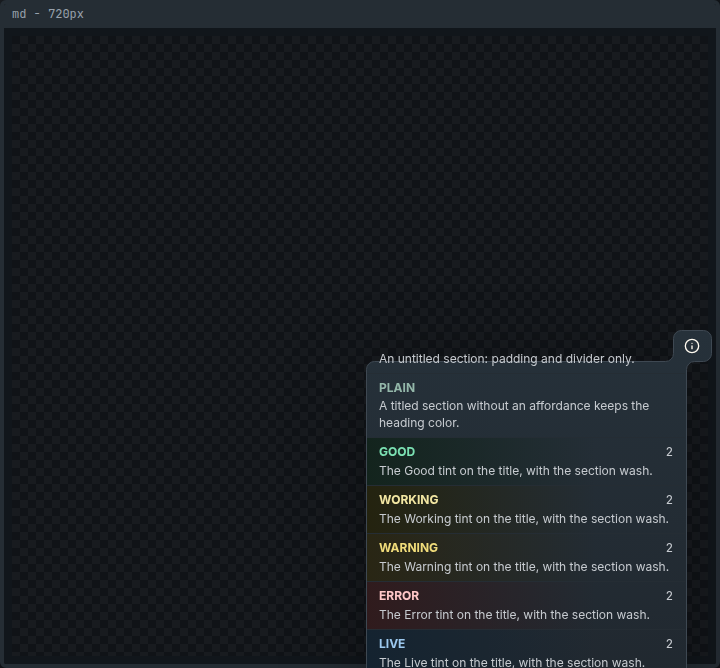

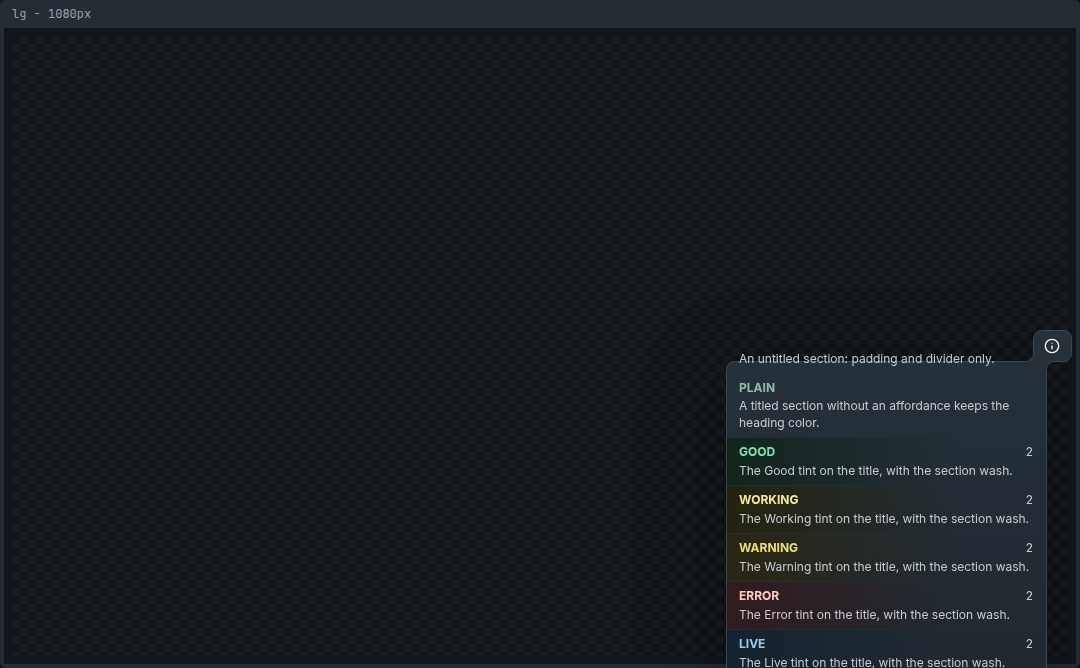

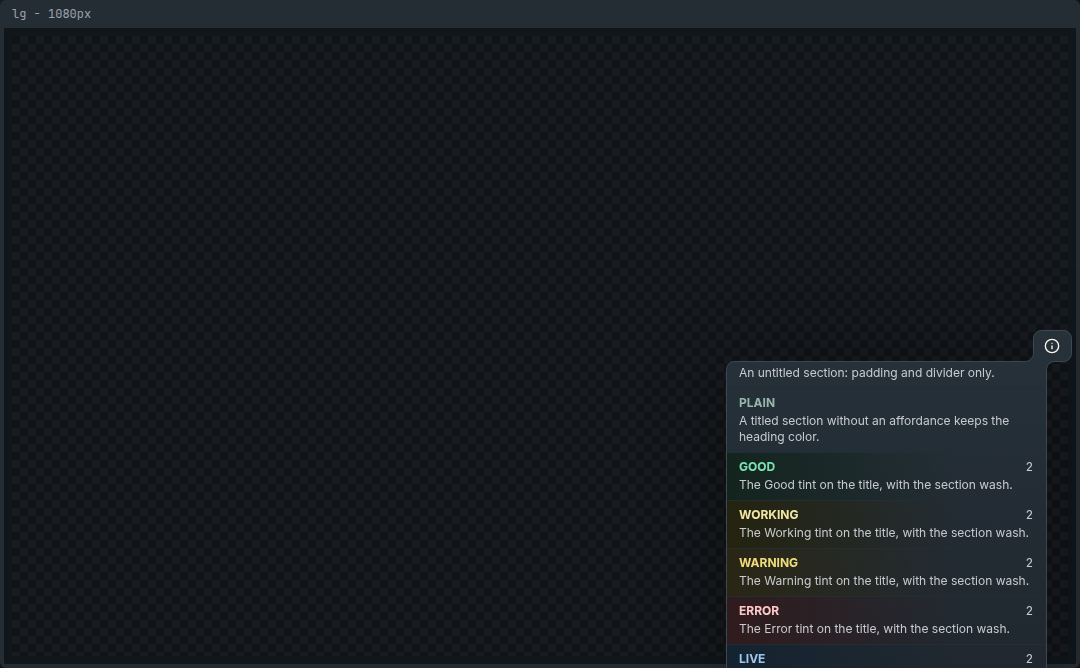

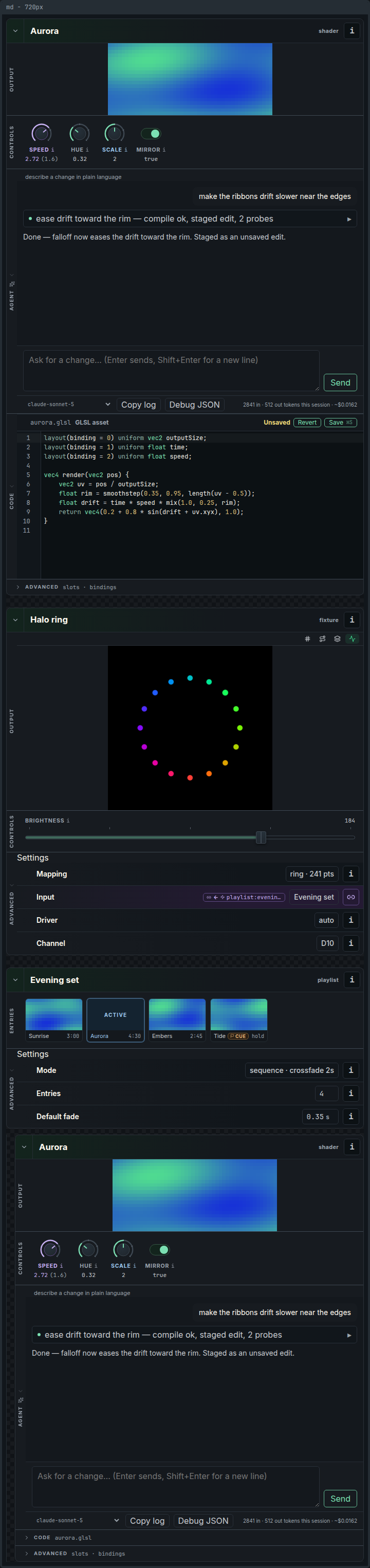

CI refreshed the story baselines on this branchThe Review every PNG in the PR's Files changed view (swipe / onion-skin).
69 more file(s)
|
…25% (G2) The style.css merge union dropped one closing brace on .lpb-ed-hidden-input, which silently killed every rule after it — the entire debug treatment and the Settings header included. One character. TEST_PATTERN_RGB drops to [64,64,64] (G2: full white is the maximum-current case on long strips); the engine tests derive PATTERN16 from the const so a retune can't strand them. Plan: lp2025/2026-07-31-1736-ephemeral-slots (G2 fixes) Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Captured in the pinned CI environment by run: https://github.com/light-player/lightplayer/actions/runs/30759371623
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
1 participant
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Plan: lp2025/2026-07-31-1736-ephemeral-slots
Path: /Users/yona/.photomancer/planning/lp2025/2026-07-31-1736-ephemeral-slots/plan.md
P2–P6 of the Debug-slots plan, stacked on PR #254 (P1, SlotRole refactor). Both branches carry a merge of main @⚠️ Stacked: no CI here until retargeted to main after #254 merges — merge #254 first, then retarget.
7a198f40a(2026-08-01).Progress — all phases complete, at G2 final review
4dc470f8f)67ae3cb46…2d72512bb)18ac35b40)OutputDef.test_patternproof case, bypass harvested from25c3581f3, mutation-checked FakeResolver proof; superseded [HANDOFF] feat: Node action events (SUPERSEDED — harvest + close) #233 commented (already closed) (e684597ad)docs/adr/2026-08-01-debug-slots-taxonomy.md+ glossary Debug entry + pane-grammar debug family; S4/S5/W9 fixed with tests; S6–S9 logged in docs/debt (8ac837aea)G2 review artifacts
ADR + glossary diff + pane-grammar addition + this PR. Nested-modules session notified for the Debug-vs-Panel boundary review.
🤖 Generated with Claude Code
