feat(kanban): add draggable vertical swimlanes and filters

[cnjack]

Summary

• replace the retired two-dimensional Columns + left-side Rows board with one top-labelled vertical Swimlanes dimension
• keep Status as the default workflow view, with alternate Priority, Assignee, and Custom swimlanes
• make pointer drag update the field owned by the selected dimension: status, priority, assignee, or the stable custom swimlane ID
• keep Desktop, Web, and jtype-board-react on the same shared model and BoardSurface
• support custom swimlane add/rename/reorder/color/delete, Unassigned drops, dangling-ID recovery, and priority/assignee conversion
• update in-app Help, package docs, design docs, generated package artifacts, translations, and the repository feature-impact workflow

Why

The previous implementation treated “swimlane” as a second horizontal row axis. JType’s intended model is the conventional Kanban model shown below: one set of vertical lanes with labels at the top and cards dragged horizontally between them.

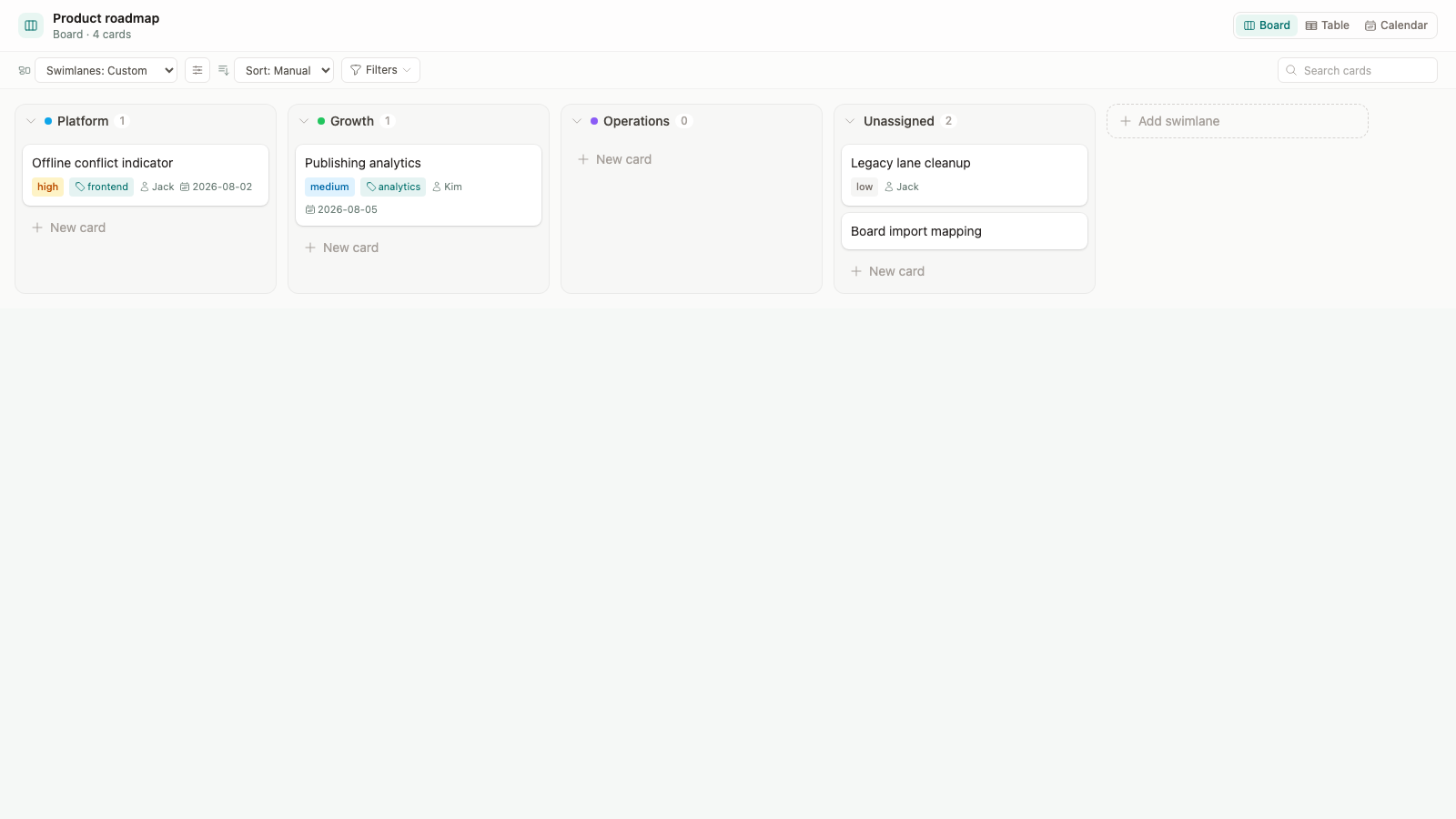

UI

Design and compatibility notes

Persistence and compatibility

• Status/Priority/Assignee selections continue to use groupBy
• Custom uses groupBy: "status", swimlaneBy: "custom", and immutable board-owned lane IDs
• historical non-custom swimlaneBy values still open without rewriting card documents
• deleted or unknown custom IDs render in Unassigned without destroying the stored ID

Verification

• Desktop build: passed
• Web frontend build: passed
• jtype-board-react build: passed
• shared unit tests: 59 passed
• vertical swimlane component E2E: 10 passed
• Desktop E2E: 30 passed
• Web E2E: 29 passed
• package unit tests: 21 passed
• Grok review: PASS
• Kimi review: PASS

Desktop and Web E2E both exercise a real pointer drag in Priority swimlanes and verify persisted card movement; the component E2E also covers Custom → Unassigned clearing.

Summary by CodeRabbit

• New Features

  • Added vertical swimlane views for Status, Priority, Assignee, and Custom dimensions.
  • Added multi-select filters for priorities, assignees, labels, due dates, blocked cards, missing swimlanes, and “My cards.”
  • Dragging cards between swimlanes now updates their placement fields correctly.
  • Added status and custom swimlane management, including stable identifiers and Unassigned handling.

• Documentation

  • Updated Kanban and embed guides with local-first behavior, swimlanes, filtering, and personalization details.

• Tests

  • Expanded desktop and web coverage for swimlanes, filters, drag-and-drop, and status management.

[coderabbitai]

Caution

Review failed

The pull request is closed.

ℹ️ Recent review info

⚙️ Run configuration

Configuration used: Path: .coderabbit.yaml

Review profile: CHILL

Plan: Pro Plus

Run ID: 9daf2a4d-0637-40e8-8556-c71d4ae0e09d

📥 Commits

Reviewing files that changed from the base of the PR and between 706071c and cc53df6.

⛔ Files ignored due to path filters (14)

• internal-docs/kanban/mockups/status-columns-filter-redesign.png is excluded by !**/*.png
• internal-docs/kanban/mockups/status-management-redesign.png is excluded by !**/*.png
• internal-docs/kanban/mockups/vertical-swimlanes-redesign.png is excluded by !**/*.png
• packages/board-react/dist/index.d.ts is excluded by !**/dist/**
• packages/board-react/dist/index.js is excluded by !**/dist/**
• packages/board-react/dist/style.css is excluded by !**/dist/**
• shared/i18n/locales/en/messages.mjs is excluded by !**/i18n/locales/**
• shared/i18n/locales/en/messages.po is excluded by !**/i18n/locales/**
• shared/i18n/locales/ja/messages.mjs is excluded by !**/i18n/locales/**
• shared/i18n/locales/ja/messages.po is excluded by !**/i18n/locales/**
• shared/i18n/locales/ko/messages.mjs is excluded by !**/i18n/locales/**
• shared/i18n/locales/ko/messages.po is excluded by !**/i18n/locales/**
• shared/i18n/locales/zh/messages.mjs is excluded by !**/i18n/locales/**
• shared/i18n/locales/zh/messages.po is excluded by !**/i18n/locales/**

📒 Files selected for processing (33)

• AGENTS.md
• internal-docs/kanban/status-columns-filter-redesign.md
• internal-docs/kanban/swimlane-management-design.md
• internal-docs/kanban/swimlane-management-ui-design.md
• packages/board-react/README.md
• packages/board-react/src/JTypeBoard.tsx
• services/jtype-web/frontend/src/help/content/articles/kanban-boards-and-cards.en.md
• services/jtype-web/frontend/src/help/content/articles/kanban-boards-and-cards.ts
• services/jtype-web/frontend/src/help/content/articles/kanban-boards-and-cards.zh.md
• services/jtype-web/frontend/src/help/content/articles/kanban-embed-your-board.en.md
• services/jtype-web/frontend/src/help/content/articles/kanban-embed-your-board.ts
• services/jtype-web/frontend/src/help/content/articles/kanban-embed-your-board.zh.md
• services/jtype-web/frontend/src/help/content/articles/kanban-web-board-view.en.md
• services/jtype-web/frontend/src/help/content/articles/kanban-web-board-view.ts
• services/jtype-web/frontend/src/help/content/articles/kanban-web-board-view.zh.md
• services/jtype-web/frontend/src/pages/WebBoardView.tsx
• shared/components/board/BoardFilterPopover.tsx
• shared/components/board/BoardSurface.tsx
• shared/components/board/BoardSwimlanes.tsx
• shared/components/board/LaneDetailsPopover.tsx
• shared/components/board/StatusManagerDialog.tsx
• shared/components/board/SwimlaneConversionDialog.tsx
• shared/components/board/SwimlaneManagerDialog.tsx
• shared/components/board/index.ts
• shared/components/board/types.ts
• shared/lib/board.ts
• src/components/BoardView.tsx
• tests/e2e/app.spec.ts
• tests/e2e/board-swimlanes.spec.ts
• tests/e2e/web-dashboard.spec.ts
• tests/fixtures/board-swimlanes.tsx
• tests/unit/boardFilters.spec.ts
• tests/unit/boardSwimlanes.spec.ts

---

📝 Walkthrough

Walkthrough

This PR redesigns Kanban boards around one vertical swimlane dimension, adds structured multi-criteria filters, updates card persistence across Desktop, Web, and board-react, expands end-to-end coverage, and revises supporting design and help documentation.

Changes

Kanban vertical swimlane redesign

Layer / File(s)	Summary
Lane and filter model shared/lib/board.ts, tests/unit/*	Adds active-lane mapping, stable custom-lane handling, unassigned targets, structured filters, legacy normalization, and unit coverage.
Board surface and controls shared/components/board/*	Uses vertical lane membership for rendering and drag/drop, adds the filter popover, and updates status/custom swimlane management UI.
Host integrations src/components/BoardView.tsx, services/.../WebBoardView.tsx, packages/board-react/src/JTypeBoard.tsx	Creates and moves cards through lane-specific frontmatter patches and wires currentUser to the embedded board.
Validation and documentation tests/e2e/*, tests/fixtures/*, packages/board-react/README.md, services/.../help/*, internal-docs/kanban/*	Adds Desktop/Web swimlane, filter, persistence, and help-center tests and updates product, package, and design documentation.

Estimated code review effort: 4 (Complex) | ~60 minutes

Possibly related PRs

• cnjack/jtype#47: Earlier board-react and BoardSurface embedding changes at the same integration seams.
• cnjack/jtype#61: Earlier custom swimlane and stable-key implementation used by this redesign.
