🖐️ SignBridge

Real-time, two-way ASL ↔ Speech communication. SignBridge is an innovative application designed to bridge the communication gap between deaf/hard-of-hearing individuals and hearing individuals seamlessly.

• Signer → Listener: Sign into your webcam, and the app translates your ASL gestures into spoken words.

• Listener → Signer: Speak into the microphone, and the app transcribes your words into text.

---

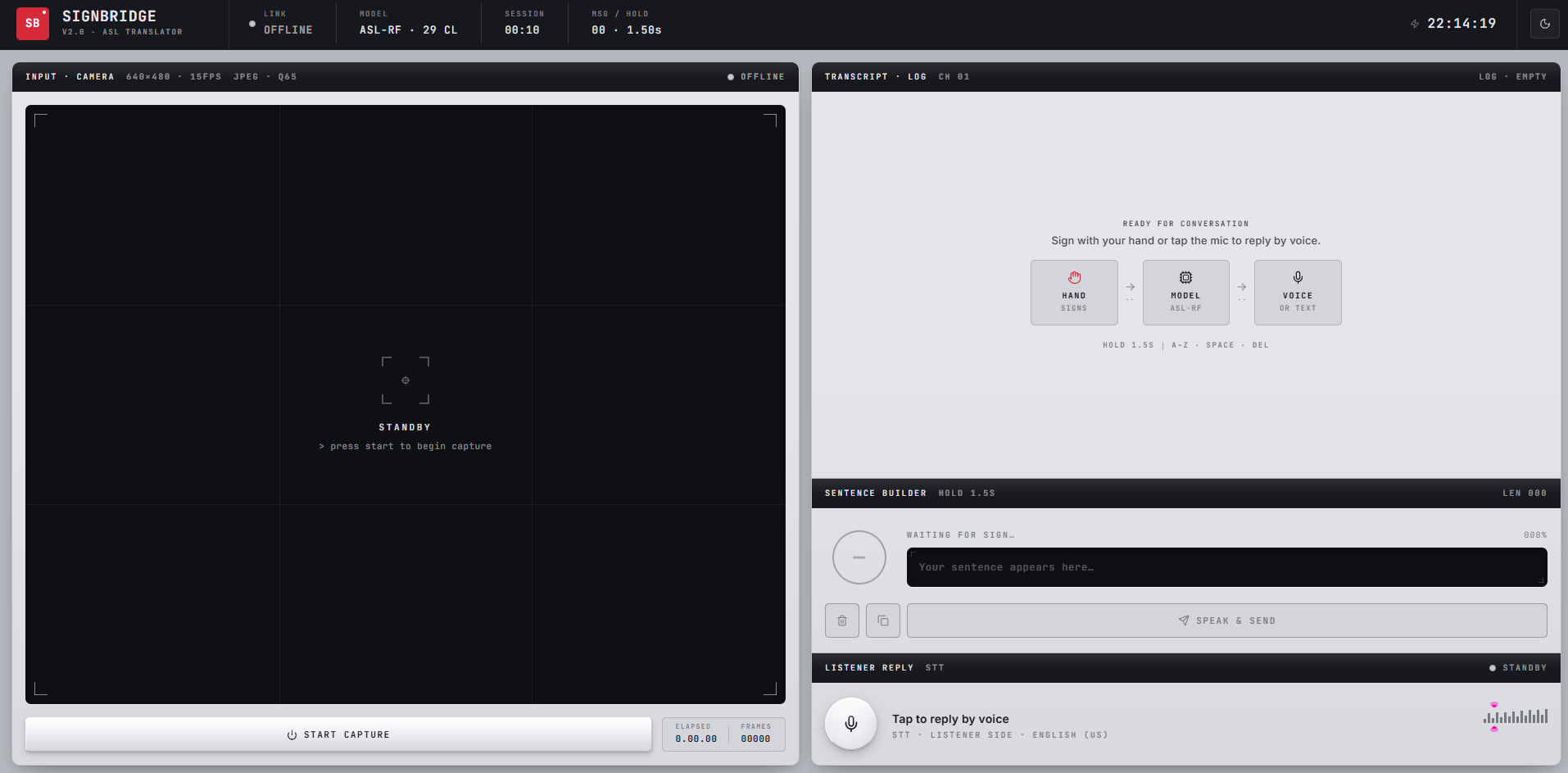

📸 See it in Action

---

✨ Key Features

• ⚡ Real-time Sign Detection: Utilizes a 21-landmark MediaPipe pipeline with single-frame WebSocket inference to ensure zero-queue latency.
• 🎯 Hold-to-Confirm Interaction: Features an intuitive hold-ring mechanism (1.5s) to confirm letters, preventing accidental inputs and typos.
• 🗣️ Two-way Translation: Bridges the gap fully—Signer to Text-to-Speech (TTS), and Listener to Speech-to-Text (STT).
• 🌗 Premium Neumorphic UI: Boasts beautiful dark and light modes with smooth Framer Motion animations for a modern feel.
• 🧪 Rock-Solid Reliability: Backed by 91 automated tests (59 frontend Vitest + 32 backend pytest) to ensure stability.

---

🏗️ Architecture & Flow

SignBridge uses a high-performance WebSocket architecture to stream binary JPEG frames to a Python backend, process them via MediaPipe and a Random Forest classifier, and return predictions instantly.

sequenceDiagram
    actor S as 🤟 Signer
    participant B as Browser
    participant WS as WebSocket
    participant MP as MediaPipe Hands
    participant RF as Random Forest
    participant UI as Sentence Builder
    actor L as 👂 Listener

    Note over S,L: ── ASL → Speech  (Signer to Listener) ──────────────────────

    S->>B: Show ASL sign to webcam
    B->>WS: JPEG frame (binary · 15 fps)
    WS->>MP: Raw frame bytes
    MP->>MP: Extract 21 hand landmarks (63 floats)
    MP->>RF: Landmark feature vector
    RF-->>WS: Predicted letter + confidence
    WS-->>UI: Prediction JSON
    UI->>UI: Hold-ring fills over 1.5 s → letter confirmed
    UI->>L: Speak & Send → speechSynthesis reads aloud

    Note over S,L: ── Speech → Text  (Listener to Signer) ──────────────────────

    L->>B: Speaks into microphone
    B->>B: Web Speech API — continuous SpeechRecognition
    B-->>S: Transcript appears in conversation feed

Loading

---

🛠️ Tech Stack

Click to expand technology details

Layer	Technology	Purpose
Frontend	React 19 + Vite + TypeScript	UI and camera capture
Styling	Tailwind CSS v4 + custom neumorphic system	Dark/light neumorphism theme
Animations	Framer Motion	Transitions, ripple rings, entrance choreography
Backend	FastAPI + Uvicorn	WebSocket endpoint, inference API
Hand Tracking	MediaPipe Hands	21-landmark extraction (63 floats per frame)
Classifier	scikit-learn Random Forest	Letter prediction from landmarks
Real-time	WebSocket binary frames	JPEG bytes → JSON prediction
Speech	Web Speech API	TTS (speechSynthesis) + STT (SpeechRecognition)

---

🚀 Getting Started

Prerequisites

Make sure you have Python 3.10+, Node.js 18+, a working webcam, and Chrome/Edge (for Speech-to-Text).

1. Clone & Setup

git clone https://github.com/pvchaitanya8/Sign-Language-Translator.git
cd Sign-Language-Translator

2. Backend Environment

cd backend
python -m venv venv

# Activate the virtual environment:
# Windows: venv\Scripts\activate
# Mac/Linux: source venv/bin/activate

pip install -r requirements.txt

3. Model Training

(Skip if backend/model/asl_model.pkl is already present)

Download the Kaggle ASL Alphabet dataset and place the train/ and test/ folders inside backend/dataset/.

# Process images to extract landmarks (~2-5 mins)
python model/preprocess.py

# Train the Random Forest classifier (~30s)
python model/train.py

4. Run the Application

Terminal 1 (Backend):

cd backend
uvicorn main:app --reload --port 8000

API health check: http://localhost:8000/health

Terminal 2 (Frontend):

cd frontend
npm install
npm run dev

App interface: http://localhost:5173

---

📖 Usage Guide

Signing a message (Signer → Listener)

1. Show your hand to the camera.
2. A prediction overlay appears with the detected letter and confidence percentage.
3. The ring disc in the Sentence Builder fills clockwise as you hold the sign.
4. Hold for 1.5 seconds → the letter is confirmed and appended to your sentence.
5. Special signs:
   • SPACE: Adds a space between words
   • DEL: Removes the last character
6. Click Speak & Send to read the sentence aloud via Text-to-Speech.

Replying by voice (Listener → Signer)

1. Click the mic button (bottom-right) — ripple rings will pulse.
2. Speak naturally; interim text appears dynamically.
3. Click the mic button again to stop. Your speech is transcribed to text.

ASL Classes Supported

The model recognises 29 classes: A-Z, space, del, and nothing. Note: J and Z involve motion and have reduced accuracy in this static-landmark model.

---

🧪 Testing

SignBridge is heavily tested to ensure reliability.

Backend (pytest):

cd backend
pip install -r requirements-dev.txt
pytest -v

Frontend (Vitest):

cd frontend
npm run test:run

---

⚙️ Configuration & API

Environment Variables

For production, create frontend/.env.local:

VITE_WS_URL=wss://your-app.onrender.com/ws

WebSocket API (/ws)

Accepts raw JPEG bytes. Returns JSON predictions:

{
  "hand_detected": true,
  "letter": "A",
  "confidence": 0.94
}

---

💖 Support

Consider supporting by:



---

📜 License

Distributed under the Apache-2.0 License. See LICENSE for more information.

---
