feat(banpick): server-driven deck+stake draft UI + pool-fetch seam

[ChronoFinale]

Server-driven ban-pick draft UI + pool-fetch seam

The deck+stake ban-pick draft engine and the client seam that fetches a server-generated pool. Pairs with the server-side draft PR (BalatroMultiplayerAPI-Server); the PvP/Speedrun consumer wiring lands separately.

Engine (api/ban_pick.lua)

• Tuple identity is deck+stake — banning Red@White no longer bans Red@Gold
• Random is a blind commit (you don't see the roll before confirming)
• Two-column tile hover — deck info alongside stake detail
• Cocktail composition badge — shows the merged decks for a composite tile
• Counter + buttons stay visible off-turn (greyed), so the draft never looks frozen
• Per-draft stale-broadcast protection with an atomic random commit + guest UI sync
• Draft tiles drag-locked; popups clamp to the screen on both axes
• Composite-agnostic — a pool item carries its own decks/name; the engine has zero cocktail-specific knowledge

Seam (api/matchmaking/draft.lua, networking/api_client/draft.lua)

• issue_draft_pool fetches the match's server pool; callback(nil) when there's none, leaving fallback-vs-abort to the consumer
• Server-authoritative — no max_stake param, no client-side event posting

Testing

• luajit -bl clean on all touched files
• Visual scenarios in dev/shots.lua + dev/test_banpick_*.lua (run by the DevTools shot harness)

Draft — opening for eyes on the engine + seam shape.

---

Screenshots — draft UI

Rendered by the DevTools shot harness (BMP_SHOT_SUITE=1) from the dev/shots.lua scenarios in this PR; each caption is that scenario's expect: contract. Images are hosted on the fork branch pr16-shots — they are not part of the code diff.

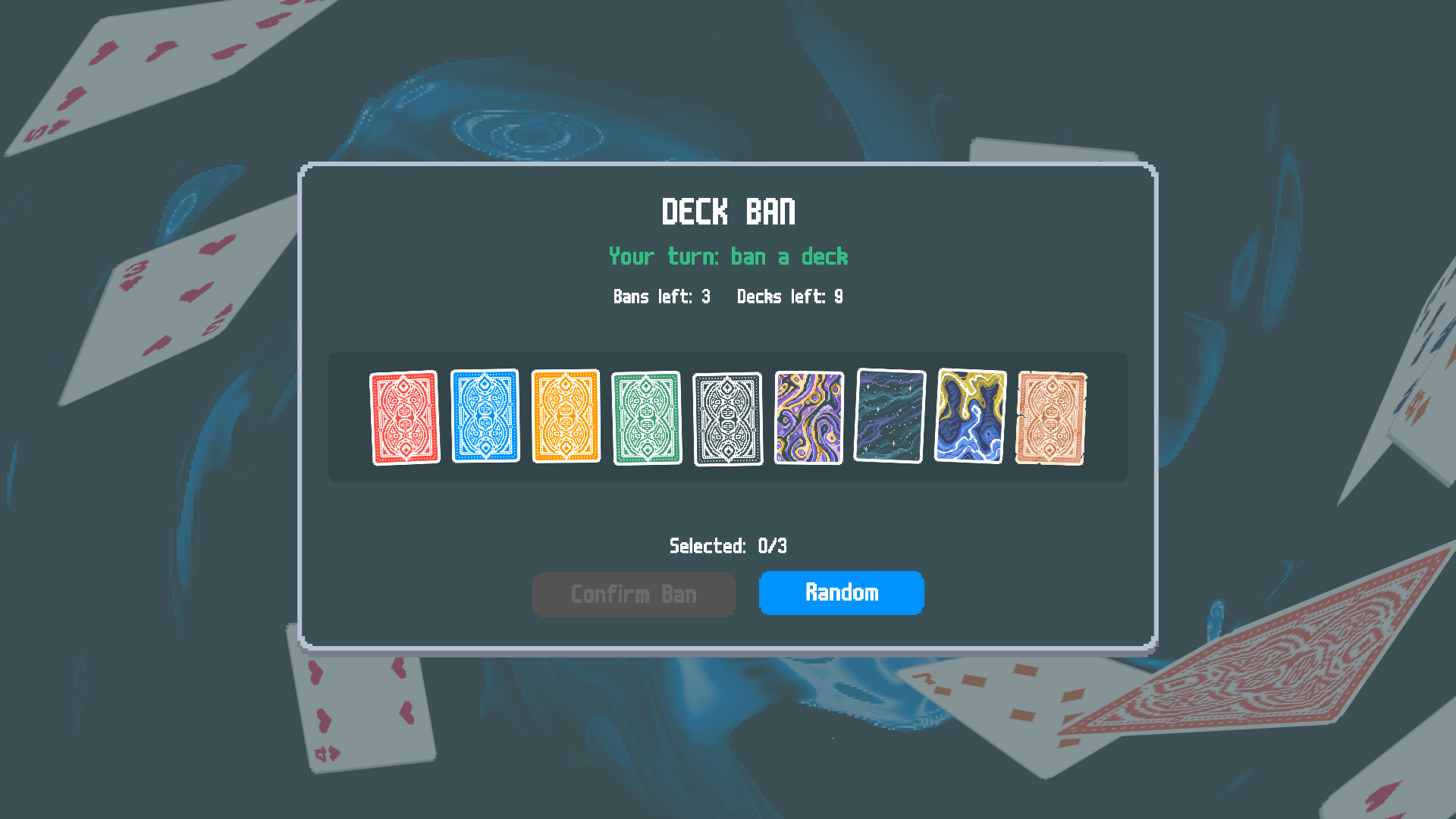

Your turn — ban a deck


DECK BAN overlay over the menu: "Your turn: ban a deck" (green), 9 deck tiles, Selected: 0/3, greyed Confirm Ban, blue Random.

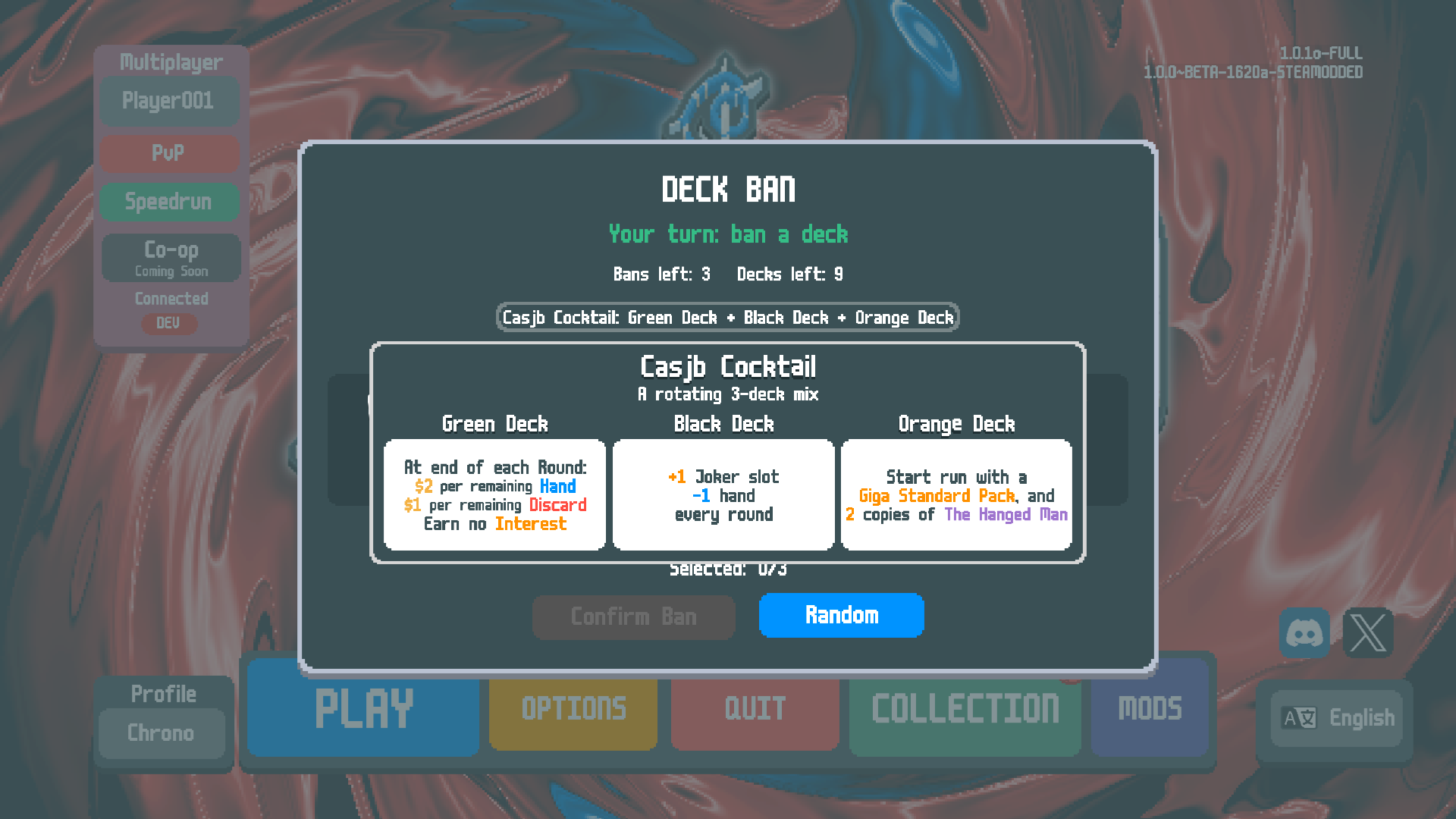

Cocktail badge — hover


Badge reads "Casjb Cocktail: Green Deck + Black Deck + Orange Deck"; its hover shows the three decks side by side with full effects. The engine renders the composite verbatim — the consumer owns the wording.

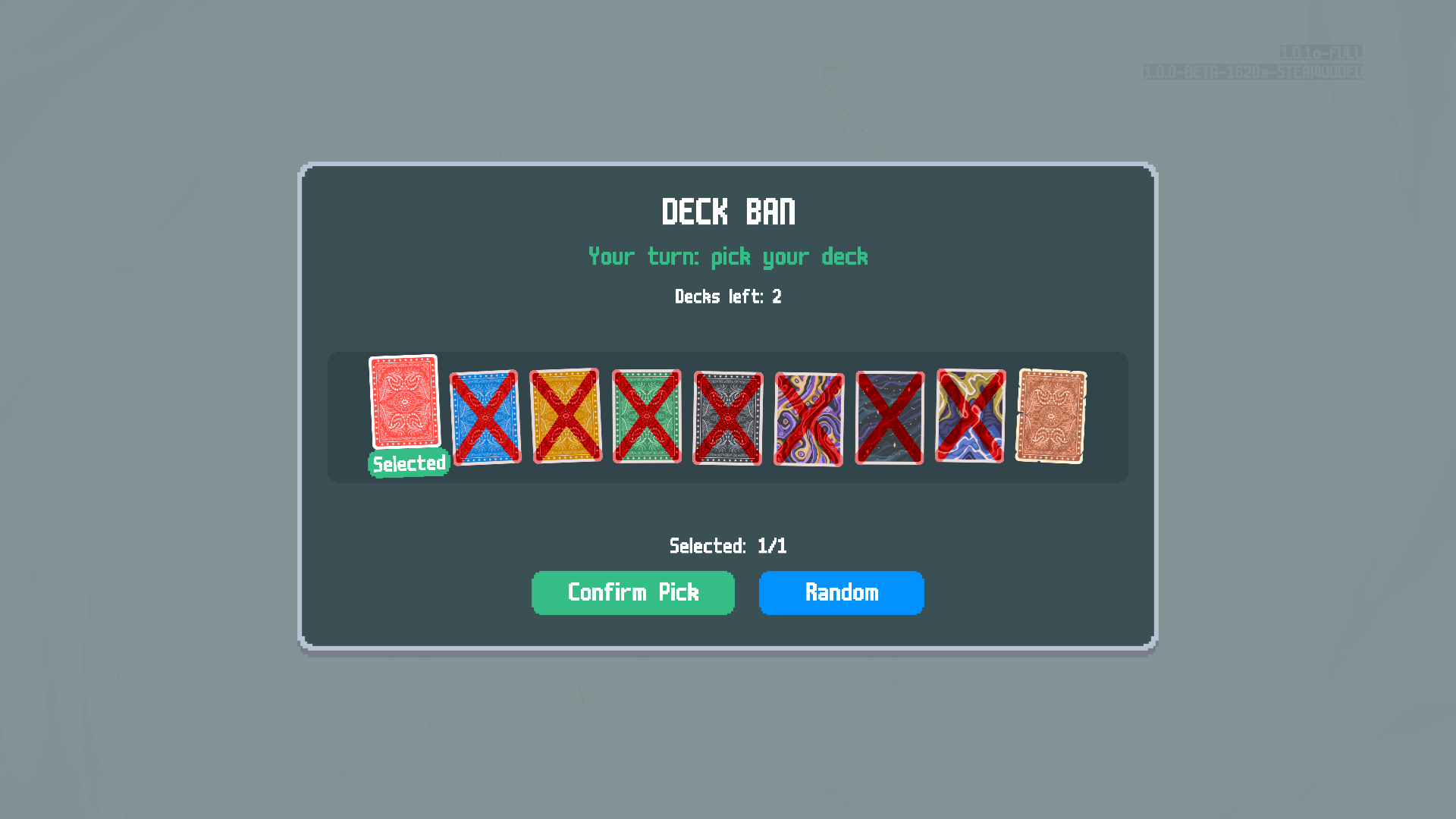

Pick phase


Final PICK step between the last two: seven tiles debuffed, two live; green "pick your deck"; the chosen survivor raised with a green Selected tag; green Confirm Pick.

More scenarios (7) — selection, blind Random, off-turn, banned tiles, tuple/cocktail hovers, Speedrun variant

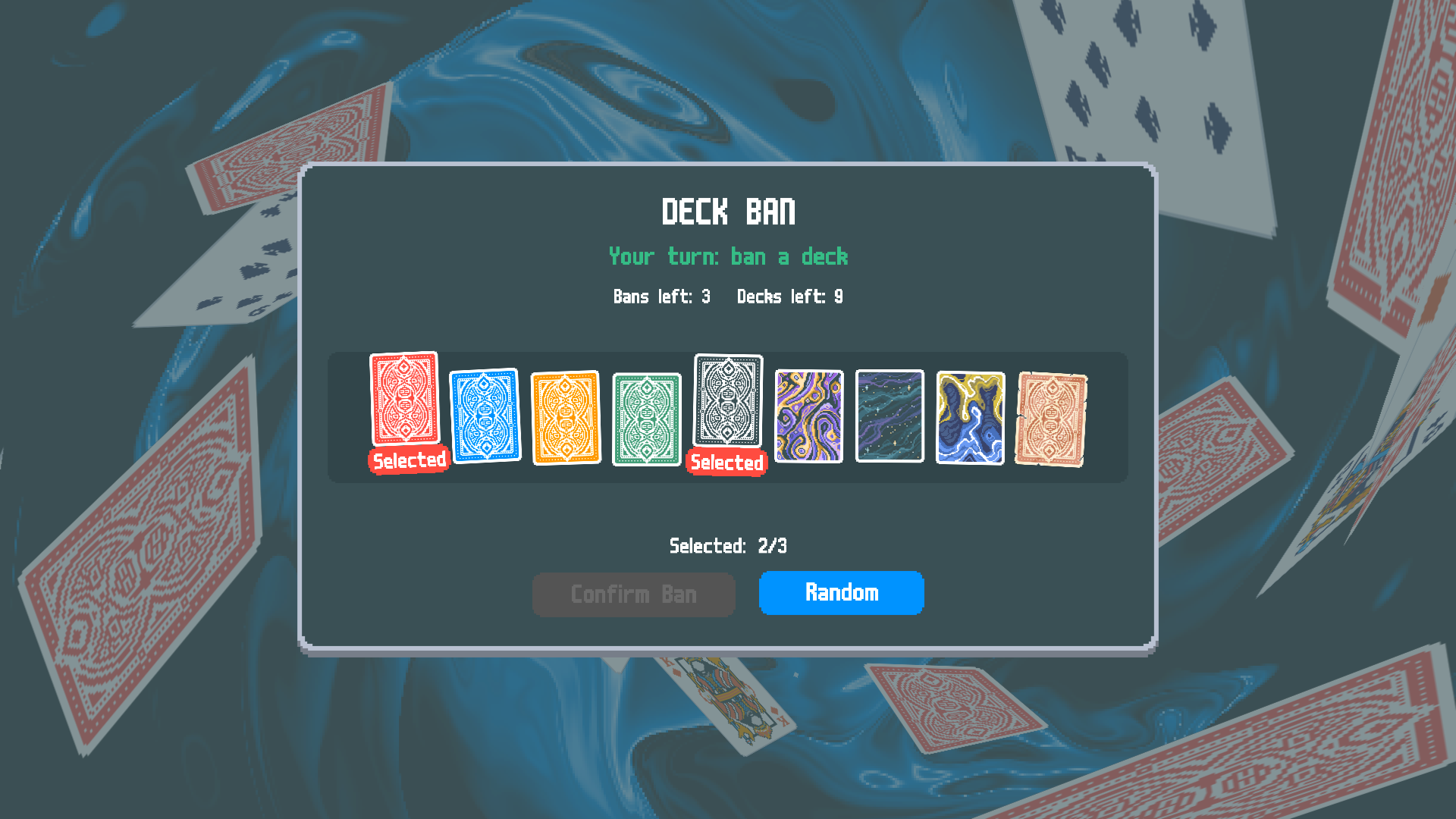

2 of 3 selected


Two tiles raised with red Selected tags; counter 2/3; Confirm stays greyed until exactly 3.

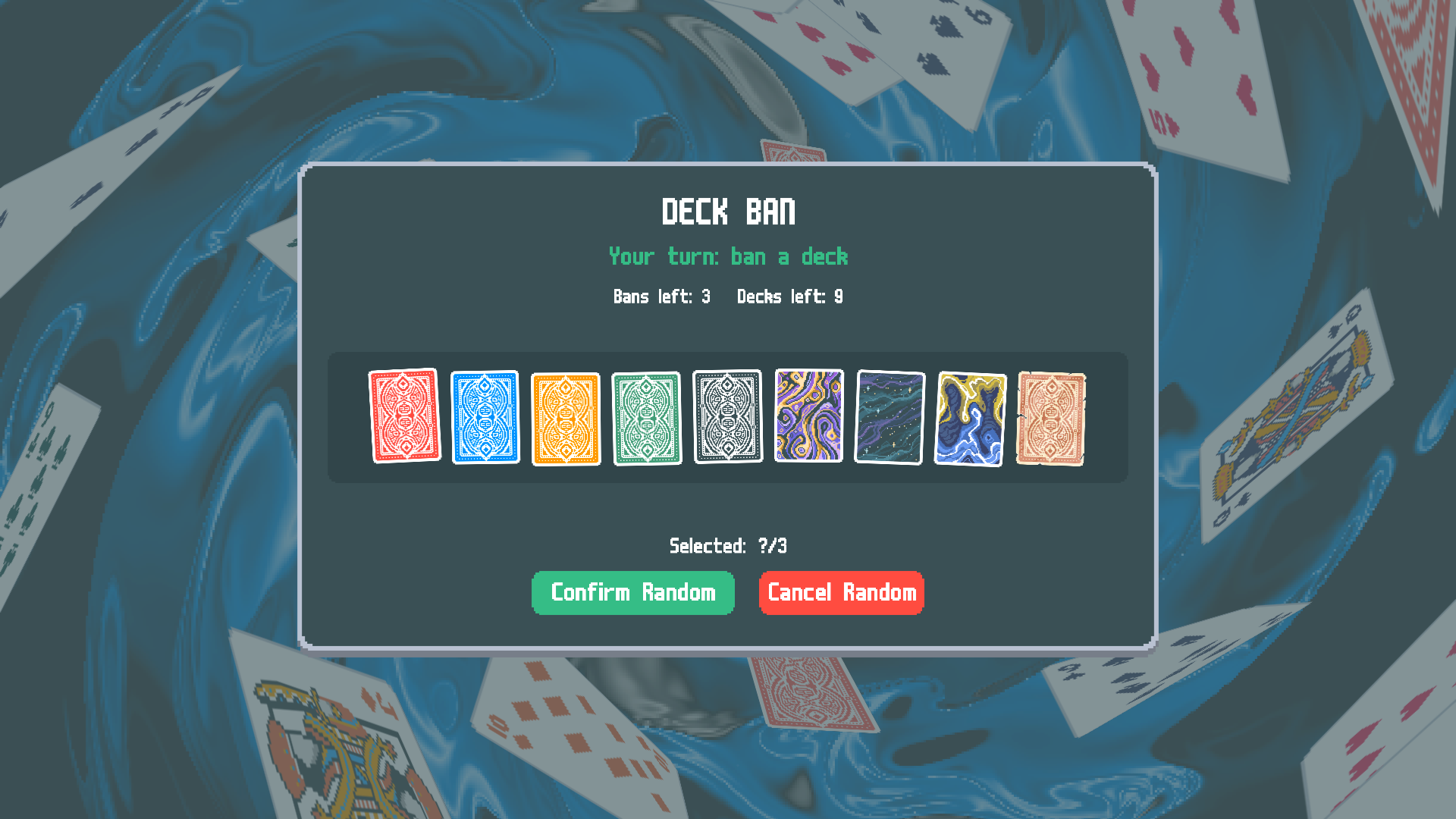

Random armed (blind commit)


No tiles raised; counter ?/3; Random turns red "Cancel Random"; Confirm goes green "Confirm Random" — nothing is revealed until Confirm, so there is nothing to peek at or reroll-fish.

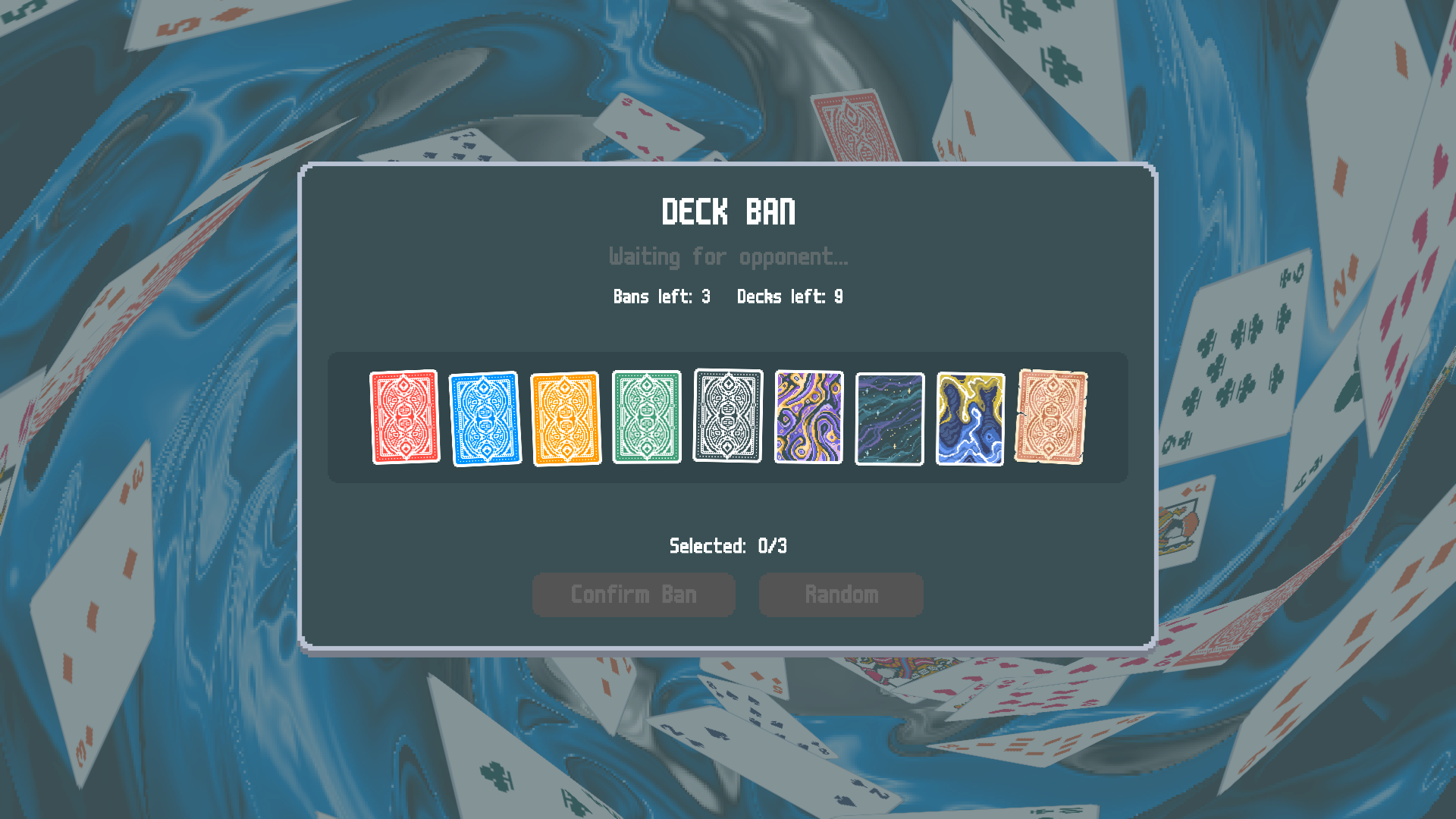

Opponent's turn


Status not green; counter and both buttons visible but greyed; layout otherwise identical.

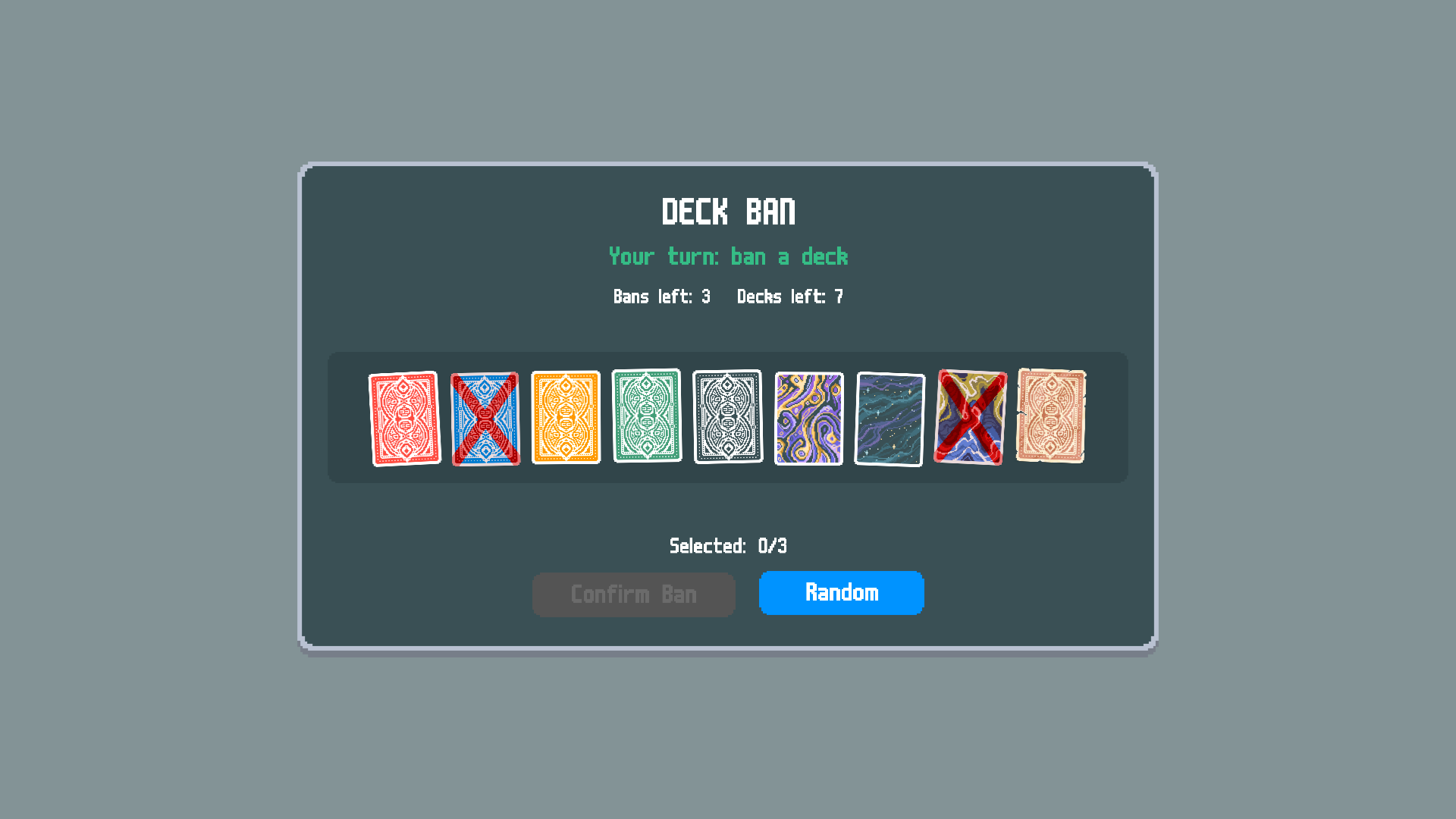

Banned tiles


Banned tiles are debuffed (darkened X overlay) and non-interactive.

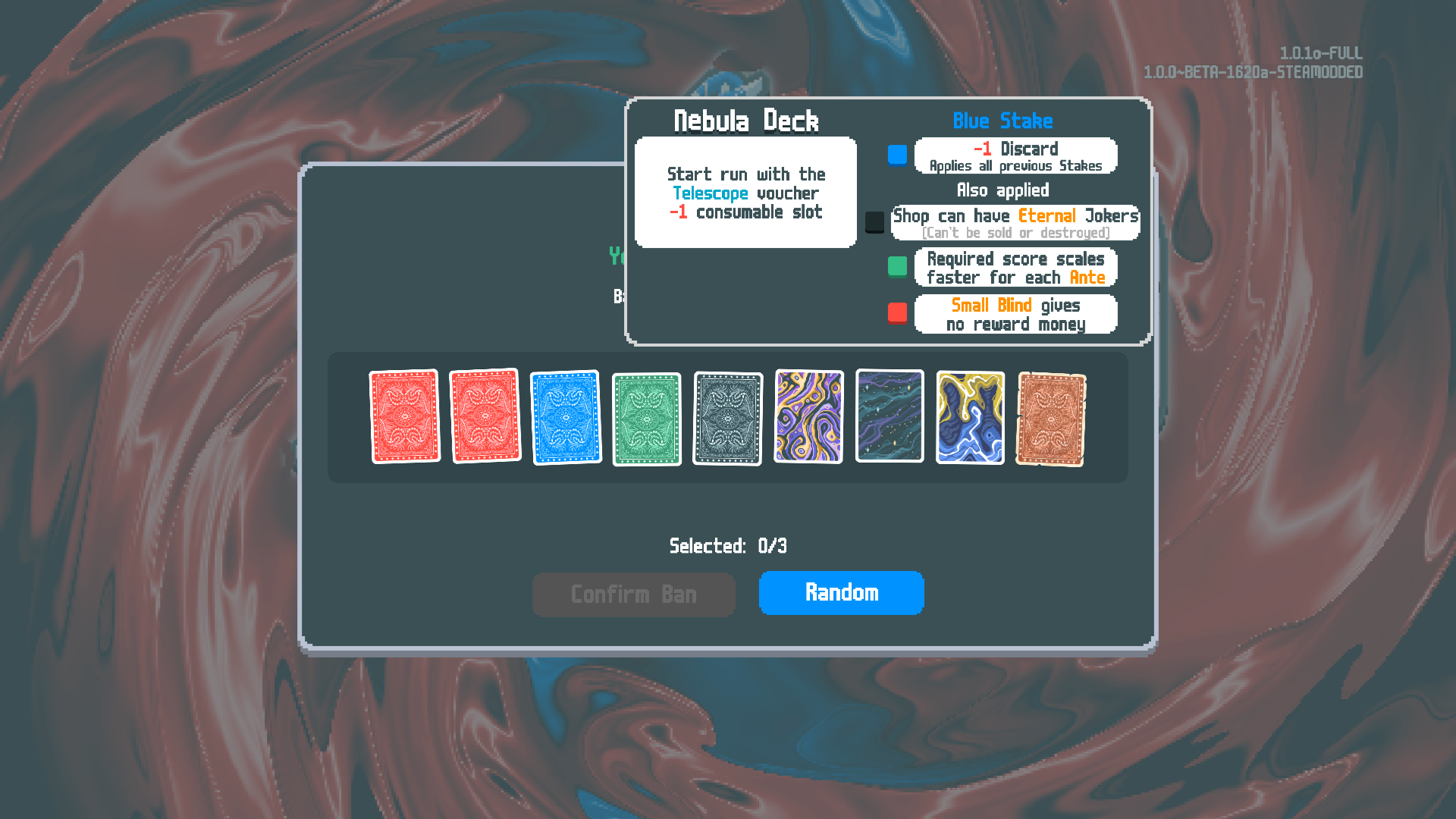

Tuple hover — stake column


Hover popup: deck name + effects on the left, stake column on the right (stake name in its colour, description, "Also applied" list). Clamped fully on screen.

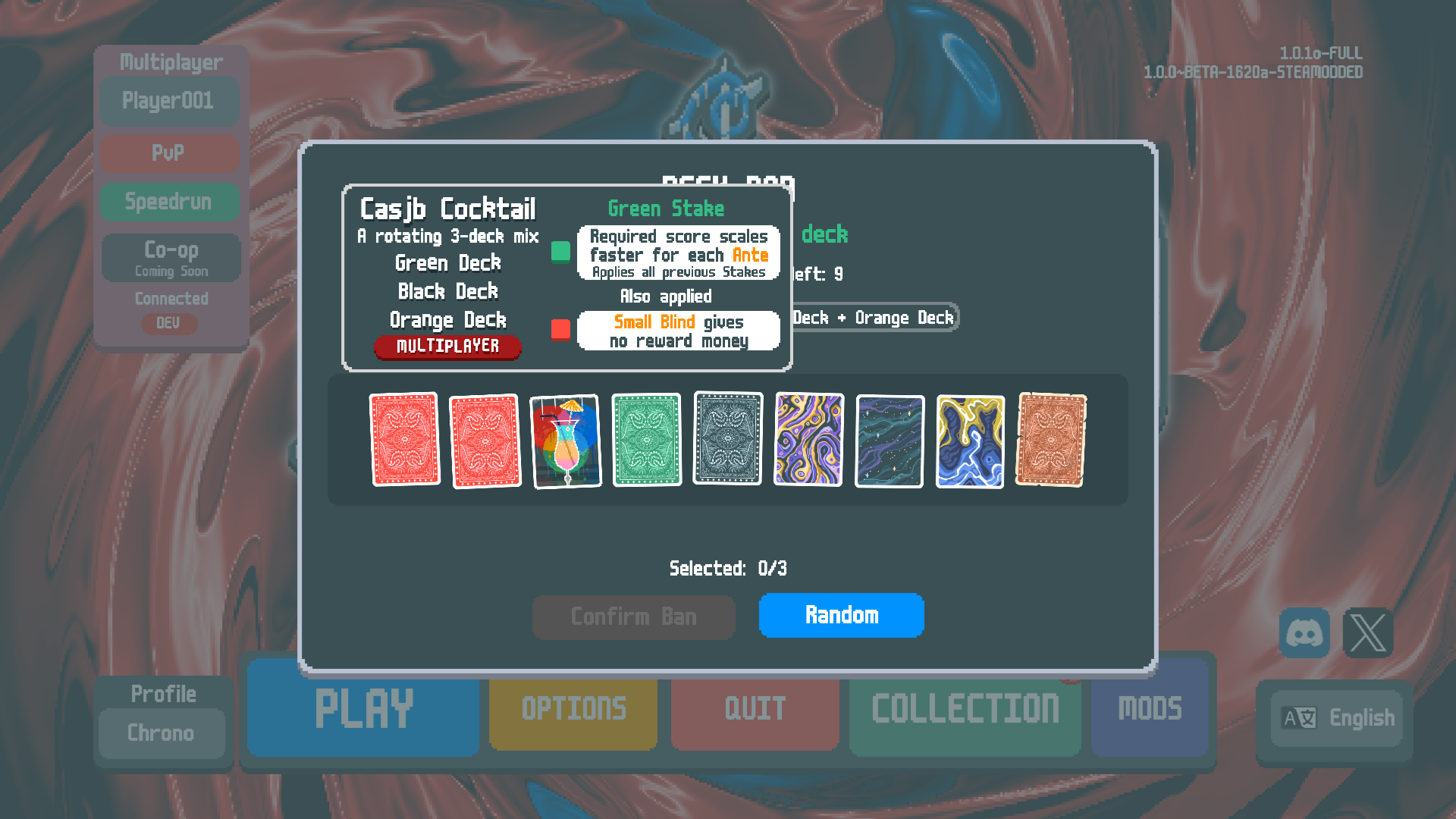

Cocktail tile hover — compact


The cocktail tile's own hover is compact: title, "rotating 3-deck mix", three deck names only (no effect boxes) plus the stake column — same footprint as a normal deck hover.

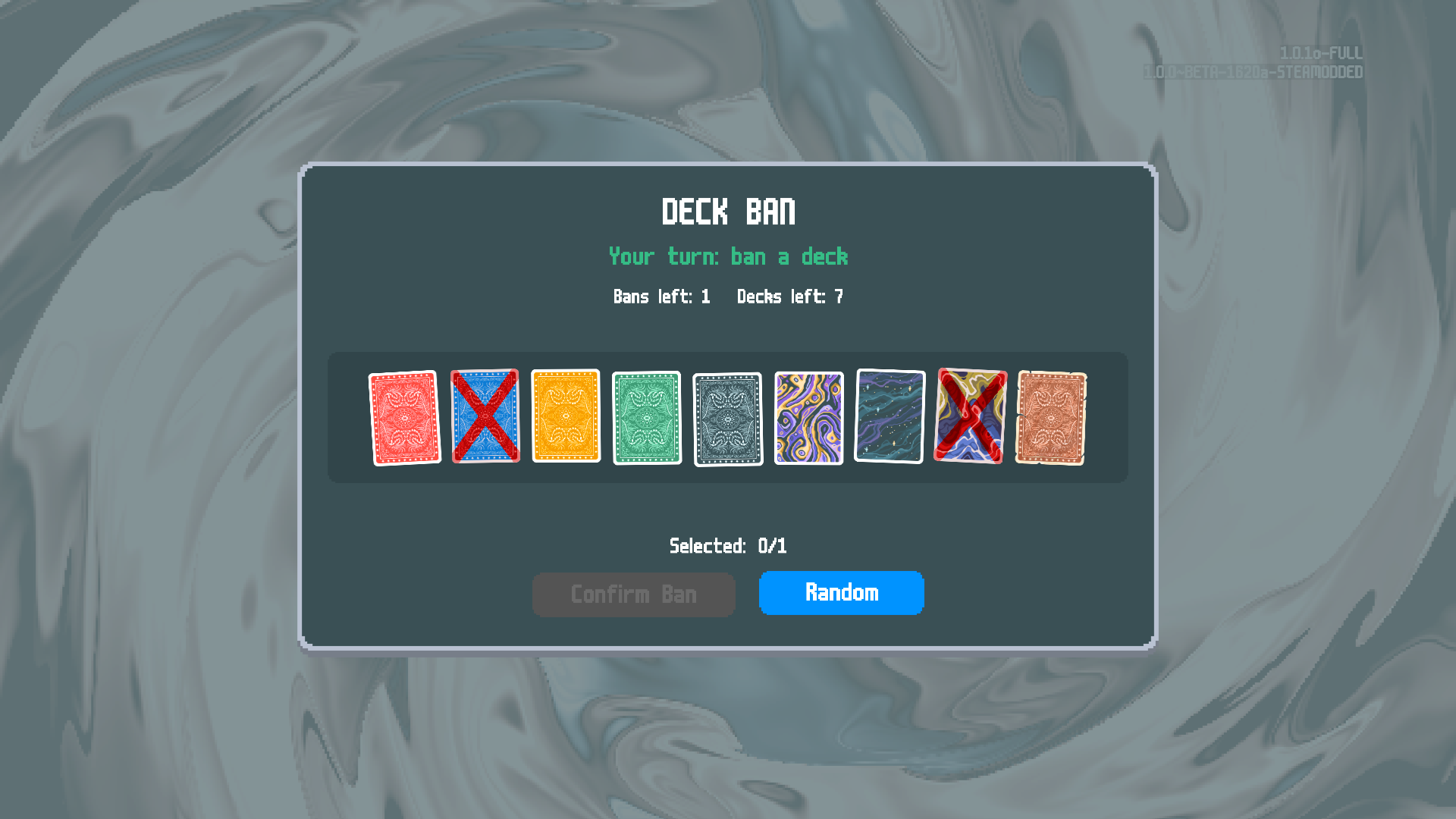

Same engine, different consumer — Speedrun


The generic schedule driving Speedrun's multi-pick draft variant — same MPAPI.BanPick engine, different consumer config.

---

Note on the screenshots

These are captured with the full stack running locally. The engine in this PR is consumer-agnostic — it renders whatever pool and composite items a consumer hands it — so the specific content shown (the deck+stake tuples, the 1 / 3 / 3 / pick schedule, the "Casjb Cocktail" wording and composition) comes from code outside this PR that is not all upstreamed yet:

• The PvP consumer wiring (the gamemode schedule, deck/cocktail decoration) lives in the PvP mod and is not yet in a PR.
• The server-generated pool + weekly cocktail live in the server — see below.

The framework code here is self-contained and testable on its own (dev/test_banpick_*.lua); the shots just show it driven by the real consumer + server.

Related — server side

The pools this UI fetches, and the weekly cocktail shown in shots 07–08, are produced server-side in feat(draft): server-generated draft pools with per-queue policy — BalatroMultiplayerAPI-Server#42. This client PR is the rendering + fetch_draft_pool half of that feature.

The weekly cocktail is just data, rotated at runtime via a small admin endpoint (no redeploy):

# Read the current cocktail
curl https://<server>/admin/weekly-cocktail \
  -H "x-admin-secret: $ADMIN_SECRET"
# 200
# { "name": "Casjb", "decks": ["b_green", "b_black", "b_mp_orange"] }

# Rotate it (takes effect at the next match start)
curl -X PUT https://<server>/admin/weekly-cocktail \
  -H "x-admin-secret: $ADMIN_SECRET" \
  -H "content-type: application/json" \
  -d '{ "name": "Casjb", "decks": ["b_green", "b_black", "b_mp_orange"] }'
# 200  — normalized value echoed back
# { "name": "Casjb", "decks": ["b_green", "b_black", "b_mp_orange"] }

Validation is server-side and strict (1–3 distinct cocktail-eligible decks — every deck except the Cocktail deck itself — and a name ≤ 40 chars):

curl -X PUT https://<server>/admin/weekly-cocktail \
  -H "x-admin-secret: $ADMIN_SECRET" -H "content-type: application/json" \
  -d '{ "name": "Nope", "decks": ["b_mp_cocktail"] }'
# 400
# { "error": "deck 'b_mp_cocktail' is not cocktail-eligible" }

The name carries no "Cocktail" suffix — the client appends its own localized wording (so "Casjb" renders as "Casjb Cocktail"), which is why the badge text in the shots is the consumer's, not the server's.

• PvP consumer: feat(draft): server-issued draft pools + weekly cocktail (matchmaking) BalatroMultiplayer#501 — the mod-side that fetches these pools + renders the cocktail.
